To find out about any of our cases you can click on it's model number in the left column.
Alternately, you can use Peli size guide calculator to find the right case.

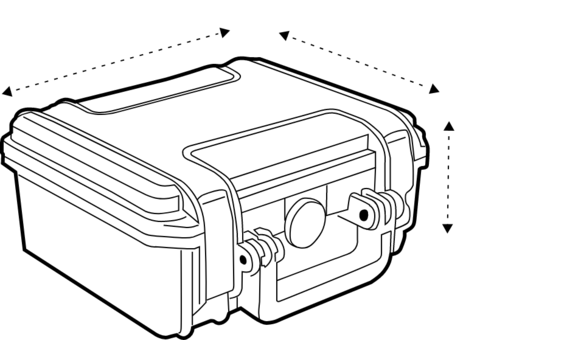

Internal Sizes
Model | Internal (mm) | External (mm) | Int. Depth (mm) | Weight (mm) | Wheels | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
L | W | D | L | W | D | Lid | Base | Empty | W/Foam | ||
Peli 1690 Transport Case with Wheels | 784 | 660 | 394 | 847 | 722 | 463 | 82 | 312 | 15.4 | 19.5 | Yes |
Peli 1640 Case - with wheels | 632 | 632 | 364 | 691 | 691 | 414 | 60 | 304 | 14.14 | 17.56 | Yes |
Peli 0370 PROTECTOR CASE - with wheels | 610 | 610 | 605 | 673 | 673 | 641 | 125 | 480 | 14.5 | 18.6 | Yes |
Peli 1780 Case - with wheels | 1058 | 558 | 385 | 1140 | 643 | 419 | 200 | 185 | 17.42 | 22.23 | Yes |
Peli 1500 EMS Case + Kit | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | No |
Peli 1630 Case with Wheels | 730 | 554 | 392 | 794 | 615 | 444 | 82 | 310 | 14.06 | 16.33 | Yes |
Peli 1490 Case | 451 | 298 | 105 | 505 | 354 | 119 | 38 | 67 | 2.5 | 2.9 | No |
Peli 1495 CC1 Computer Case | 492 | 342 | 110 | 549 | 438 | 124 | 42 | 68 | 5.6 | 5.6 | No |
Peli 1440 Case - with wheels | 456 | 228 | 408 | 500 | 305 | 457 | 50 | 358 | 6.1 | 7.48 | Yes |
Peli 1470 Case | 408 | 278 | 98 | 425 | 332 | 111 | 38 | 60 | 1.72 | 1.94 | No |
Peli 1120 Case | 189 | 126 | 85 | 214 | 172 | 98 | 19 | 65 | 0.54 | 0.56 | No |
Peli 1730 Case with Wheels | 882 | 628 | 310 | 952 | 689 | 365 | 60 | 250 | 13.61 | 17.24 | Yes |
Peli 0550 Transport case - with wheels | 1208 | 611 | 449 | 1296 | 699 | 579 | 81 | 368 | 35.92 | 37.19 | Yes |
Peli Storm iM2050 Case | 241 | 190 | 108 | 300 | 249 | 119 | 38 | 70 | 1.22 | 1.36 | No |
Peli 1740 case - with wheels | 1059 | 345 | 302 | 1121 | 409 | 355 | 62 | 240 | 9.98 | 12.25 | Yes |
Peli 1770 Case with Wheels | 1396 | 396 | 219 | 1458 | 469 | 267 | 42 | 171 | 16.3 | 18.8 | Yes |
Peli 1170 case | 270 | 156 | 82 | 296 | 212 | 96 | 27 | 55 | 1.96 | 2.1 | No |
Peli 1015 Micro Case | 131 | 67 | 35 | 170 | 99 | 47 | 11 | 24 | 0.21 | 0.54 | No |
Peli 1460 case | 471 | 252 | 278 | 529 | 323 | 324 | 125 | 153 | 3.97 | 5.66 | No |
Peli 1150 Case | 216 | 152 | 95 | 240 | 198 | 109 | 20 | 75 | 0.76 | 0.82 | No |
Peli 1200 Case | 241 | 185 | 105 | 270 | 246 | 123 | 30 | 75 | 1.1 | 1.22 | No |
Peli 1300 Case | 240 | 185 | 153 | 270 | 246 | 174 | 28 | 125 | 1.42 | 1.56 | No |
Peli Storm iM2600 Case | 508 | 355 | 196 | 538 | 406 | 211 | 51 | 145 | 3.86 | 5.26 | No |
Peli 1430 Case | 360 | 162 | 295 | 429 | 221 | 325 | 50 | 245 | 2.62 | 3.02 | No |
Peli 1650 Case - with wheels | 740 | 460 | 265 | 781 | 520 | 295 | 45 | 220 | 10.9 | 12.7 | Yes |
Peli 1670 Case - with wheels | 713 | 419 | 233 | 788 | 492 | 284 | 46 | 188 | 10.25 | 11.95 | Yes |
Peli 1700 Case - with wheels | 908 | 343 | 133 | 968 | 406 | 155 | 44 | 89 | 7.3 | 7.7 | Yes |
Peli 1750 Case - with wheels | 1280 | 339 | 135 | 1424 | 408 | 156 | 44 | 90 | 9.12 | 11.6 | Yes |
Peli 1510 Case with Wheels | 514 | 288 | 191 | 559 | 351 | 229 | 45 | 146 | 5.32 | 5.95 | Yes |
Peli 1550 Case | 482 | 368 | 195 | 525 | 436 | 217 | 45 | 150 | 4.8 | 5.4 | No |
Peli 0340 PROTECTOR CASE - with wheels | 457 | 460 | 450 | 518 | 518 | 489 | 105 | 345 | 10.9 | 13.5 | Yes |
Peli Storm iM3075 Case - with wheels | 757 | 528 | 452 | 845 | 620 | 490 | 102 | 349 | 14.29 | 20.41 | Yes |
Peli Storm iM3100 Case - with wheels | 927 | 355 | 152 | 1011 | 419 | 170 | 51 | 102 | 6.89 | 8.98 | Yes |
Peli Storm iM3200 Case - with wheels | 1117 | 355 | 152 | 1198 | 419 | 170 | 51 | 102 | 8.03 | 9.57 | Yes |
PELI 1510 LOC Laptop Overnight Case - with wheels | 514 | 288 | 191 | 559 | 351 | 229 | 45 | 146 | 6.44 | 6.17 | Yes |
Peli 1495 Laptop Case | 479 | 333 | 97 | 549 | 438 | 124 | 28 | 68 | 3.3 | 3.8 | No |
Peli Storm iM2075 Case | 241 | 190 | 184 | 300 | 249 | 196 | 38 | 146 | 1.5 | 1.68 | No |
Peli Storm iM2100 Case | 330 | 234 | 152 | 361 | 289 | 165 | 51 | 102 | 1.91 | 2.22 | No |
Peli 1490 CC1 Laptop Case | 451 | 289 | 105 | 504 | 354 | 119 | 42 | 68 | 2.48 | 2.95 | No |
Peli 1500 Case | 435 | 292 | 155 | 470 | 357 | 176 | 45 | 110 | 3.06 | 3.52 | No |
Peli 1520 Case | 455 | 325 | 170 | 486 | 392 | 192 | 45 | 125 | 3.7 | 4.24 | No |
Peli 1560 Case - with wheels | 516 | 390 | 228 | 560 | 456 | 265 | 50 | 178 | 7.71 | 9.07 | Yes |
Peli 1600 Case | 556 | 428 | 204 | 616 | 494 | 220 | 46 | 158 | 5.3 | 6.3 | No |
Peli 1610 Case - with wheels | 562 | 431 | 268 | 624 | 490 | 303 | 52 | 216 | 8.96 | 10.42 | Yes |
Peli 0350 PROTECTOR CASE | 507 | 510 | 498 | 571 | 569 | 540 | 120 | 378 | 11.79 | 14.52 | No |
Peli 1030 Micro Case | 161 | 64 | 49 | 190 | 98 | 62 | 17 | 32 | 0.27 | 0.29 | No |
Peli 1040 Micro Case | 161 | 95 | 44 | 190 | 128 | 54 | 17 | 23 | 0.33 | 0.35 | No |
Peli 1050 Micro Case | 161 | 95 | 67 | 190 | 128 | 79 | 17 | 50 | 0.38 | 0.43 | No |
Peli 1060 Micro Case | 209 | 106 | 54 | 238 | 141 | 67 | 17 | 37 | 0.47 | 0.54 | No |
Peli Storm iM2975 Case - with wheels | 736 | 457 | 350 | 795 | 518 | 394 | 51 | 300 | 10.34 | 13.38 | Yes |
Peli Storm iM2875 Case with Wheels | 571 | 536 | 289 | 632 | 602 | 333 | 51 | 239 | 9.12 | 11.16 | Yes |
Peli Storm iM2950 Case - with wheels | 736 | 457 | 267 | 795 | 518 | 310 | 51 | 216 | 9.43 | 13.02 | Yes |
Peli Storm iM2200 Case | 381 | 267 | 152 | 411 | 322 | 168 | 51 | 101 | 2.22 | 2.77 | No |
Peli Storm iM2620 Case - with wheels | 508 | 355 | 254 | 538 | 406 | 269 | 51 | 203 | 5.67 | 6.58 | Yes |
Peli Storm iM3220 Case - with wheels | 1117 | 355 | 216 | 1198 | 419 | 234 | 51 | 165 | 9.25 | 11.25 | Yes |
Peli Storm iM3300 Case - with wheels | 1282 | 355 | 152 | 1366 | 419 | 170 | 51 | 102 | 8.66 | 10.43 | Yes |
Peli Storm iM2370 Computer Case | 462 | 307 | 132 | 508 | 373 | 147 | 43 | 89 | 2.59 | NO FOAM | No |
Peli 1020 Micro Case | 131 | 86 | 41 | 162 | 121 | 54 | 17 | 24 | 0.26 | 0.28 | No |
Peli Storm iM2306 Case | 432 | 160 | 157 | 462 | 213 | 170 | 51 | 107 | 1.95 | 2.13 | No |
Peli Storm iM2370 Case | 462 | 307 | 132 | 508 | 373 | 147 | 43 | 89 | 2.59 | 3.27 | No |
Peli Storm iM2300 Case | 432 | 297 | 157 | 462 | 352 | 170 | 51 | 107 | 2.68 | 3.22 | No |
Peli Storm iM2400 Case | 457 | 330 | 170 | 487 | 386 | 185 | 51 | 119 | 2.95 | 3.54 | No |
Peli Storm iM2720 Case - with wheels | 559 | 432 | 254 | 625 | 500 | 297 | 51 | 203 | 7.62 | 9.98 | Yes |
Peli Storm iM2700 Case | 559 | 432 | 203 | 625 | 500 | 218 | 51 | 152 | 5.03 | 6.53 | No |
Peli Storm iM2750 Case - with wheels | 559 | 432 | 322 | 625 | 500 | 366 | 51 | 272 | 8.39 | 10.61 | Yes |
Peli 1400 Case | 306 | 234 | 130 | 340 | 295 | 152 | 30 | 100 | 1.78 | 2.02 | No |
Peli 1450 Case | 374 | 260 | 154 | 409 | 331 | 175 | 44 | 111 | 2.50 | 2.90 | No |
Peli Storm iM2450 Case | 457 | 330 | 213 | 487 | 386 | 229 | 51 | 162 | 3.36 | 4.04 | No |
Peli 1560 LOC - with wheels | 516 | 390 | 228 | 560 | 456 | 265 | 50 | 178 | 7.71 | 8.25 | Yes |
Peli 1560 Studio Case - with wheels | 516 | 390 | 228 | 560 | 456 | 265 | 50 | 178 | 8.25 | 8.65 | Yes |
Peli 1460 Tool Case | 471 | 252 | 277 | 529 | 323 | 324 | 125 | 153 | N/A | No | |
Peli 1510 SC Studio Case - with wheels | 514 | 288 | 191 | 559 | 351 | 229 | 45 | 146 | 5.4 | 6.2 | Yes |
Peli 1637 Air Case with Wheels | 595 | 446 | 337 | 676 | 525 | 378 | 51 | 284 | 6.9 | 8.8 | Yes |
Peli 1557 Air Case | 440 | 330 | 248 | 487 | 401 | 267 | 51 | 197 | 3.3 | 3.7 | No |
Peli Air 1607 Case with Wheels | 535 | 402 | 295 | 613 | 478 | 337 | 51 | 244 | 6 | 7.3 | Yes |
Peli 1507 Air Case | 385 | 289 | 216 | 429 | 358 | 236 | 51.6 | 164.8 | 2.38 | 2.92 | No |
Peli Storm iM2275 Case | 359 | 335 | 241 | 387 | 394 | 260 | 81 | 160 | 3.6 | 4.6 | No |
Peli 1660 Case - with wheels | 740 | 522 | 446 | 802 | 584 | 495 | 88 | 358 | 15.8 | 19.54 | Yes |
Peli 1485 Air Case | 451 | 259 | 156 | 487 | 325 | 175 | 46 | 110 | 2.1 | 2.4 | No |
Peli 1535 Air Case Carry On with Wheels | 518 | 284 | 183 | 558 | 355 | 228 | 51 | 132 | 3.9 | 4.5 | Yes |
Peli 1555 Air Case | 584 | 324 | 191 | 629 | 393 | 209 | 51 | 140 | 3.4 | 4.1 | No |
Peli 1605 Air Case | 660 | 356 | 213 | 733 | 426 | 232 | 51 | 162 | 4.2 | 5.3 | No |
Peli 1615 Air Case with Wheels | 752 | 394 | 238 | 828 | 467 | 280 | 50 | 188 | 6.4 | 8 | Yes |
Peli 1525 Air Case | 521 | 287 | 171 | 558 | 355 | 190 | 51 | 121 | 2.7 | 3.2 | No |
Peli 1560 LFC Case - with wheels | 516 | 390 | 228 | 560 | 456 | 265 | 50 | 178 | 8.3 | 8.3 | Yes |
Peli 1510 LFC Case - with wheels | 514 | 289 | 193 | 559 | 351 | 229 | 46 | 147 | 6.6 | 6.6 | Yes |
Peli Storm iM3410 - with wheels | 1384 | 254 | 152 | 1466 | 323 | 169 | 51 | 102 | 7.4 | 8.8 | Yes |
Trekpak for Peli™ 1555 Case | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | No |
Peli 1745 Air Case with Wheels | 1118 | 426 | 202 | 1186 | 492 | 222 | 64 | 139 | 7.8 | 9.6 | Yes |
Peli 1465 Air Case | 473 | 254 | 278 | 529 | 321 | 324 | 125 | 152 | 3.2 | 4 | No |
Peli Storm iM2500 Case with Wheels | 520 | 292 | 183 | 551 | 358 | 226 | 51 | 132 | 5.03 | 6.21 | Yes |
Peli 1510M Mobility Case - with wheels | 502 | 279 | 193 | 598 | 365 | 270 | 45 | 147 | 7.4 | 8.1 | Yes |
Peli 1506 Air Case | 475 | 239 | 198 | 511 | 305 | 217 | 51 | 147 | 2.4 | 2.9 | No |
Peli 1560M Mobility Case - with wheels | 506 | 380 | 229 | 604 | 465 | 307 | 51 | 178 | 9.7 | 11 | Yes |
Peli 1556 Air Case - with wheels | 549 | 273 | 228 | 595 | 343 | 268 | 51 | 177 | 4.4 | 5.1 | Yes |
Peli 1610M Mobility Case - with wheels | 553 | 424 | 270 | 665 | 584 | 347 | 52 | 218 | 11.9 | 13.2 | Yes |
Peli 1606 Air Case - with wheels | 623 | 312 | 260 | 696 | 384 | 300 | 51 | 209 | 5.6 | 6.7 | Yes |
Peli 1620 Case - with wheels | 558 | 430 | 320 | 630 | 492 | 352 | 52 | 268 | 9.44 | 11.16 | Yes |
Peli 1626 Air Case - with wheels | 715 | 358 | 298 | 790 | 433 | 339 | 51 | 247 | 6.6 | 8.2 | Yes |
Peli R20 Personal Utility Ruck Case | 180 | 86 | 50 | 228 | 123 | 73 | N/A | N/A | 0.6 | NO FOAM | No |
Peli R40 Personal Utility Ruck Case | 194 | 119 | 48 | 250 | 155 | 73 | 18 | 30 | 0.8 | NO FOAM | No |
Peli R60 Personal Utility Ruck Case | 226 | 136 | 75 | 283 | 174 | 99 | N/A | N/A | 1.1 | NO FOAM | No |
Peli 1720 Case - with wheels | 1067 | 343 | 133 | 1127 | 406 | 155 | 44 | 90 | 7.6 | 8.6 | Yes |
Peli 1646 Air Case with Wheels | 814 | 403 | 341 | 896 | 483 | 383 | 50 | 291 | 9.3 | 11.7 | Yes |
Peli 1755 Air Long Case - with wheels | 1397 | 356 | 203 | 1469 | 439 | 225 | N/A | N/A | 9.1 | 11.3 | Yes |
Peli G5 Personal Utility RF Field Wallet | 104 | 65 | 11 | 127 | 76 | 2 | N/A | N/A | N/A | N/A | No |
Peli 1595 Air Case | 650 | 382 | 229 | 724 | 452 | 272 | N/A | N/A | 6.2 | 7.3 | No |
Peli M40 Micro Case | 152 | 97 | 53 | 173 | 127 | 66 | 20 | 36 | N/A | No | |
Peli M50 Micro Case | 185 | 109 | 61 | 206 | 140 | 74 | 20 | 44 | N/A | No | |
Peli M60 Micro Case | 216 | 109 | 69 | 236 | 152 | 81 | 20 | 51 | N/A | No | |
Peli 1620M Mobility Case with Wheels | 546 | 417 | 319 | 665 | 584 | 396 | 52 | 268 | 12.7 | 14.3 | Yes |
Peli 0500 Case | 950 | 532 | 655 | 1014 | 595 | 727 | 70 | 585 | 22.68 | 26.58 | Yes |
Peli 1010 Micro Case | 111 | 73 | 41 | 149 | 103 | 54 | 18 | 24 | 0.18 | 0.20 | No |
